    Anti Corrosion Smart Motorised Card Reader Metal Painted 2 Years Warranty

    Ask Lasest Price
    Brand Name : Koten
    Certification : CE
    Model Number : K100
    Price : Negotiable
    Delivery Time : 3-45days depends on order quantity
    Payment Terms : by T/T, Western Union, Money Gram, and Paypal, 30% made in advance the balance paid before shipment
    Supply Ability : 200units per month
    • Product Details
    • Company Profile

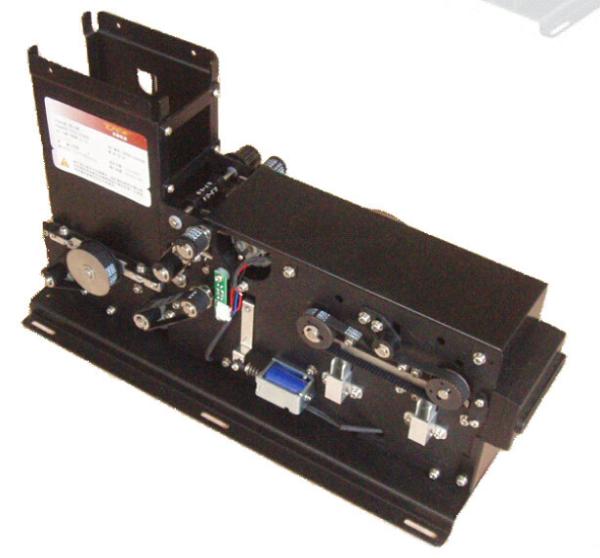

    Anti Corrosion Smart Motorised Card Reader Metal Painted 2 Years Warranty

    Anti Corrosion Smart Motorised Card Reader Metal Painted 2 Years Warranty


    I Brief introduction


    K100 adopts industrial design, good resistance to abrasion and corrosion, fit for high or low temperature and dusty environments. Simulation manpower friction card issuing makes most deformed card recognized. Active stacker installation space can let you manage cards more effective. Six shifts card space adjustment is our patented technology used for issuing cards with different thickness, and CNC precision ensures absolute unanimity of card space

    This machine supports magcard read, IC card read and write, smart card PS/SC protocol. Modular install structure makes it convenient for clients to customize and maintain machine. Smart design and parts assemble with best quality makes it fresh in appearance, and precision meets or overpass same type products all over the world. Excellent circuit design takes multiple protection into consideration. It is one of few card issuing, read/write equipment integrated with read/write, issuing card function. It supports IC card type more than other same product.


    II Feature


    SubjectFunction parameter
    Magcard

    Accordance with ISO7810 7811 standard

    card

    IC CardEMV,7816,smart card PC/SC protocol
    RF cardS50,S70,ID card
    SIM card8 port to insert card
    Card entry method

    Magnetic signal, Optoelectronic signal and

    rear card insert

    Motor shutterAllow enabled card to insert
    Card stop positionMultiple card stop position
    Input voltage detection

    have protection alert when voltage is above

    24v or below 12V

    Input voltage protection

    in negative direction

    Not above 40V


    III Functions


    SubjectFunction parameter

    Support card type

    Magcard, Accordance with ISO7810 7811

    standard card

    IC card, EMV ,7816 ,smart card PC/SC

    protocol

    Card entry method

    Insert card from the front , read/write card

    during entry

    Software interface

    Provide WINDOWS demo program, DLL

    etc.

    Card stop positionMultiple card stop position
    Customized functionProvide customized function service
    Error card capture

    Can capture error card to a special error card

    box through command

    Card theft-proof design

    Support jitter card entry and out to prevent

    from stealing card information effectively


    IV Specifications


    SubjectContent
    Operation power24VDC(Max. Current 3A,static current 0.1A)

    Operation

    temperature


    -20 ℃ to 85 ℃

    Operation

    humidity


    30-90% (Relative humidity)


    Interface

    RS232 optional ,USB(Only support smart card PS/SC

    protocol)

    Card stay

    position


    Multiple card stop position

    Operation

    condition


    Install in the cabinet


    Card size

    width : 54 ± 0.5 mm Length : 85 ± 0.5 mm Thickness:

    0.2 – 2.0mm adjustable Card material : Paper or PVC

    card

    N. W3.5Kg(Include card holder)

    Stacker

    capacity


    190pcs standard cards at thickness of 0.76mm


    Few card alert

    7-50pcs card (0.76mm thickness card, Preset is 15pcs

    card)
