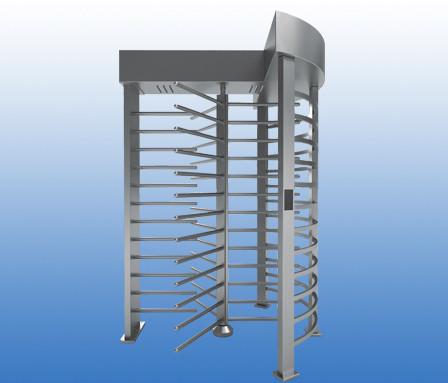

Automatic Full Height Turnstile Gate 304 SUS Single Lane 120 Degree
Rotation
Full Height Turnstile
Semi Automatic Type
KT501 Single-Lane
……
Product Descriptons:
◆ Full Height Turnstile developed by Koten is available for any
area which needs a high level of security without persons to
monitor.
◆ The machine is well designed to be rustproof, durable and able to
resist external destroy.
◆ Full Height Turnstile with 4-arm obstacle: the center rotor
rotates 90 degrees per time, and it offers a higher level of
security but less
space for users.
Product Descriptons:
◆ Full Height Turnstile developed by Koten is available for any
area which needs a high level of security without persons to
monitor.
◆ The machine is well designed to be rustproof, durable and able to
resist external destroy.
◆ Full Height Turnstile is normally designed to be Full-automatic
Type, Semi-Automatic Type,Mechanical type.
◆ Full Height Turnstile with 3-arm obstacle: the center rotor
rotates 120 degrees per time, and it offers a comfortable space for
users.
◆ Full Height Turnstile with 4-arm obstacle: the center rotor
rotates 90 degrees per time, and it offers a higher level of
security but less
space for users.
Semi-Automatic Type:
◆ The center rotor will be set free (default) or locked (optional)
automatically when the power is off.
◆ Emergency-escape function: the center rotor will be set free automatically by pressing the
emergency button which can be
remote-controlled whether the power is on or not.
◆ The structure has no motor.
Manual Type:
◆ The center rotor can only rotate by single direction, but the
direction can be changed easily inside.
◆ The structure has no electric devices.
Function Specifications:
◆ Both directions can be set as controlled mode or free mode.
◆ NO mode & NC mode can be switched over by users easily & freely.
◆ Self-recovery function: the machine will recovery automatically with invalid counting if
passage is not completed within pre-set time (5 seconds default,
adjustable by software).
◆ With interface of relay switch (the dry contact signal or +12V
electrical level signal or DC12V pulse signal of pulse width ≥
100ms, driving current ≥ 10mA), compatible with all kinds of access
controllers.
◆ Each machine can be set by Physical Address (Optional).
Framework Specifications:
◆ Framework: 304 (Standard) / 316 grade stainless steel
◆ Thickness of Ply: 1.5mm (Standard) / 2.0mm
◆ Finishing: Brushed surface (Standard) / Polishing surface
◆ Arm Length: 610mm(Standard) 500~700mm
◆ Arm Diameter: 38mm (Standard) / 48mm
◆ Max Tolerance of Arm: 30kg
◆ Driving Force of Arm: 3kg
Electric Specifications:
◆ Power Voltage: AC220V 50Hz(Standard) / AC85~240V 50or60Hz
◆ Operation Voltage: DC24V
◆ Operation Current: 3A / 5A (Max)
◆ Driving Motor: Brush DC motor
◆ Communication Interface: RS485 / RS232;
◆ Control I/O: Relay Out / Level Input
◆ Transit Speed: 20~35 passage / minute
◆ Temperature: -20℃~60℃
◆ Work Environment: Indoor/ Outdoor (Shelter)
◆ Traffic-light Indication
Customized Features:
◆ Alternative Materials, Finishes and Custom Design
◆ Access control System Integration
◆ Ticket System Integration
◆ Camera System Integration
◆ Thermostat System Integration
◆ Remote-Controlled Button
◆ Usage Counters
◆ Waterproof and Dustproof Design: IP55 for mechanical module, IP65
for electric module
Applications:
◆ Prison
◆ Office building
◆ Government
◆ School
◆ Hotel
◆ Super market
◆ Bank
◆ Park
