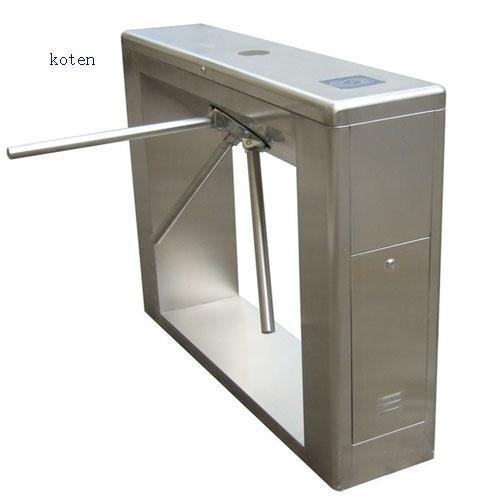

Semi-Automatic Type:
Auto-drop-arm function: the middle arm can drop down automatically (default) (or free passing) when the power is off.
Emergency-escape function: the middle arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
The structure has no motor.
Function Specifications:
Both directions can be set as controlled mode or free mode.
NO mode & NC mode can be switched over by users easily & freely.
Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by the small key on the main control board).
With interface of relay switch (the dry contact signal or +12V electrical level signal or DC12V pulse signal of pulse width100ms, driving current10mA), compatible with all kinds of access controllers.
Each machine can be set by Physical Address (Optional).

Framework Specifications:
Framework: 304 (Standard) / 316 grade stainless steel
Size: 1200×280×980(mm)
Thickness of Ply: 1.5mm (Standard) / 2.0mm
Finishing: Brushed surface (Standard) / Polishing surface
Arm Length: 510mm
Arm Diameter: 38mm (Standard) / 48mm
Max Tolerance of Arm: 30kg
Driving Force of Arm: 3kg

Electric Specifications:
Power Voltage: AC220V 50Hz(Standard) / AC85~240V50or60Hz
Operation Voltage: DC24V
Operation Current: 3A / 5A (Max)
Driving Motor: Brushless DC motor
Communication Interface: RS485
Control I/O: Relay Out (6CH) / Level Input (4CH)
Transit Speed: 20~35 passage / minute
Temperature: -20℃~60℃
Work Environment: Indoor / Outdoor (Shelter)
Traffic-light Indication
Customized Features: Alternative Materials, Finishes and Custom Design
Access Control System Integration
Ticket System Integration
Camera System Integration
Thermostat System Integration
Remote-Controlled Button
Usage Counters
Waterproof and Dustproof Design: IP55 for mechanical module, IP65 for electric module

Applications: Office building
Government
School
Hotel
Super market
Bank
Park
